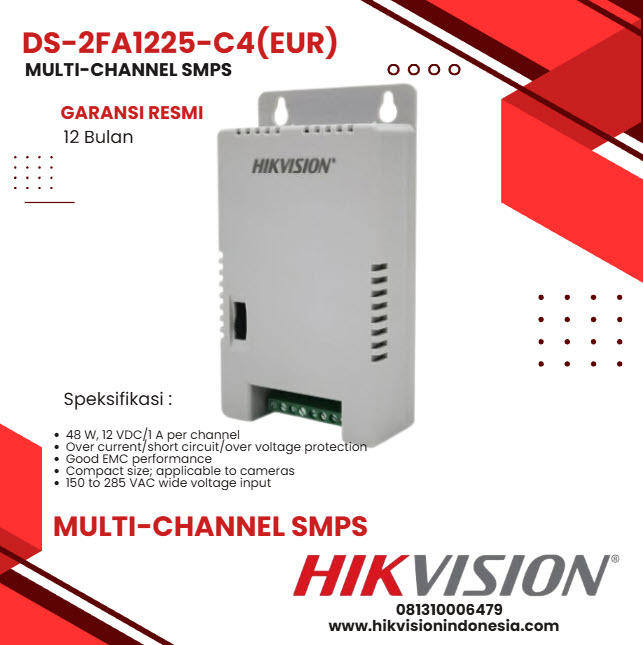

PSU Hikvision DS-2FA1225-C4

Multi-channel SMPS

• 60 W, 12 VDC/1 A max per channel, max total current is 5 A
• Over current/short circuit/over voltage protection
• Good EMC performance
• Compact size; applicable to cameras
• 150 to 285 VAC wide voltage input

* Multi-channel SMPS
* 12 VDC/1 A per channel
* Over current/short circuit/over voltage protection
* Complies with certification standards of information technology products; good EMC performance
* Compact size; applicable to cameras

Parameters
Appearance
Gray
Dimension
130 mm × 94 mm × 34 mm (5.11″ × 3.70″ × 1.34″)
Operating Conditions
0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
LED Indicator
Green
Input
185 to 240 VAC, 50 Hz to 60 Hz
Output
12 VDC/1 A per channel
Ripple & Noise 150 MVp-P
0.15 Vp-p (150 mV)
AC Input Connector
C8
DC Output Connector
DC Plug: grid terminal
Storage Conditions
-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Cable Length Compensation
Normal: 12 VDC

Long: 13.5 VDC

Ex-Long: 15 VDC
